Electric Wheelchair Reclining And Lifting Adjust By Controller - YE245CR

Electric Wheelchair Reclining And Lifting Adjust By Controller - YE245CR

The model of YE245CR is an upgraded VERSION of YE245C, with an electric backrest recline function added, it can be reclining and lifting by a controller. Tilt and recline power wheelchair have a air cylinder module, which makes the reclining and lifter very smooth, and holds 150kg at least.

Technical Information of Electric Wheelchair Reclining And Lifting Adjust By Controller

parameter
Item No.CAMEL YE245CR

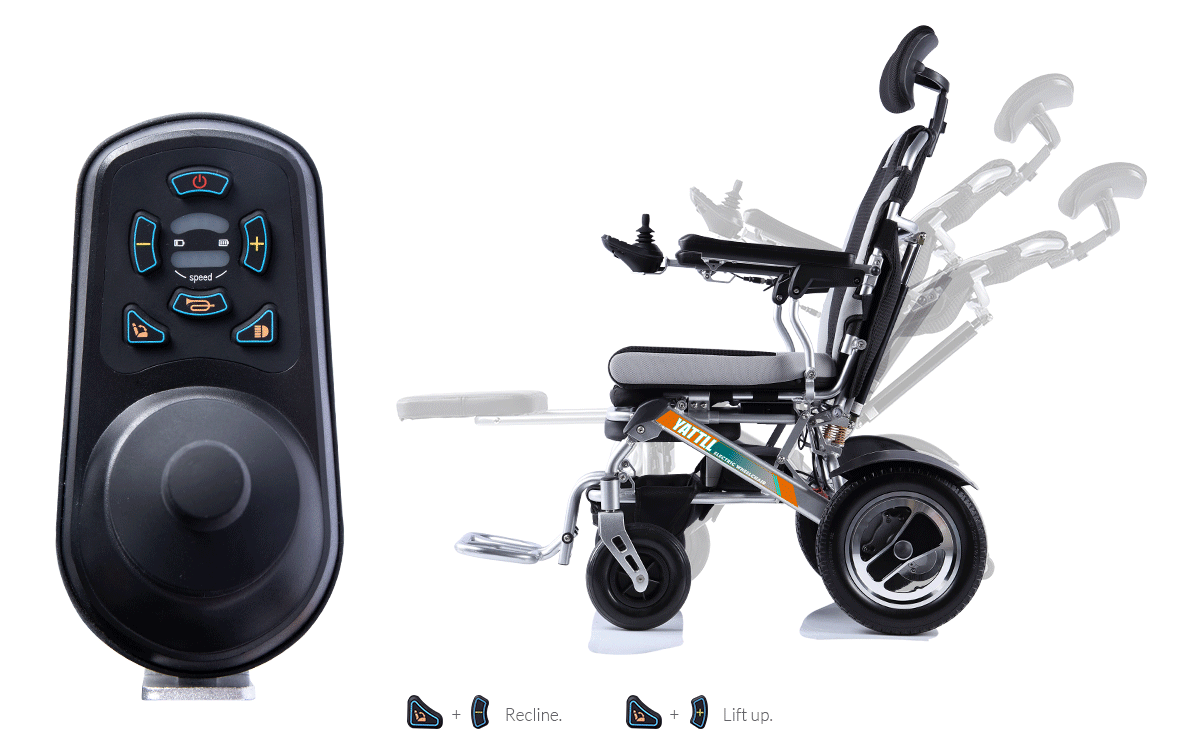

RecliningYes ( reclining and lifting adjustable by controller)
Dimension (Unfolded)104*62*98 cm / 41*24.4*38.6 in
Dimension (Folded)80*62*34 cm / 31.4*24.4*13.3 in
Seat Width45 cm / 17.7 inches
Seat Depth45 cm / 17 inches
Backrest Height53 cm / 20.8 inches
Floor-to-Seat Height50 cm / 19.6 inches
FrameLightweight Aircraft Quality Aluminum
Seat & BackrestBreathable durable seat cushion & pocket removable for easy clean
ControllerReliable Brushless Controller
Motors (pair)Brushless motor 180W *2 pcs
BatteriesLithium Battery 24V 11AH
Max Speed6 km/h
ChargerHigh Power 2A/3A
Charging Hour6 Hours
BrakeElectromagnetic Braking system Change Power mode to manual model freely
ArmrestSimple designed Flip up armrest to excess in and out freely
LegrestFoldable legrest to let passengers be closer & safer to sit on the chair
Rear Wheel12.5″ rear wheel, new designed with self absorb ability
Caster8″ wheel, new designed with self absorb ability
Maximum Range15-18 km / 9.3-11 miles
Weight Capacity135KG / 300 lbs
Ground Clearance4 cm / 1.6 inches
Max Slope12 degrees
Net WeightWithout Battery 25.5 kg / 56.2 lbs
Net WeightIncluding Battery 27.3 kg / 60.2 lbs
WARRANTY
frame3 Years
Controller12 Months
Motor12 Months
Batteries12 Months


YATTLL YE245CR Electric Wheelchair Reclining Wheelchair Display

Products
Electric Reclining Wheelchair And Lifting Adjust By Controller Videos

Electric Reclining Wheelchair And Lifting Adjust By Controller Videos

Videos
Electric Reclining Wheelchair And Lifting Adjust By Controller Videos
Driving Out Door With Electric Wheelchair YATTLL YE200

Features of Electric Wheelchair Reclining And Lifting Adjust By Controller

Features
01

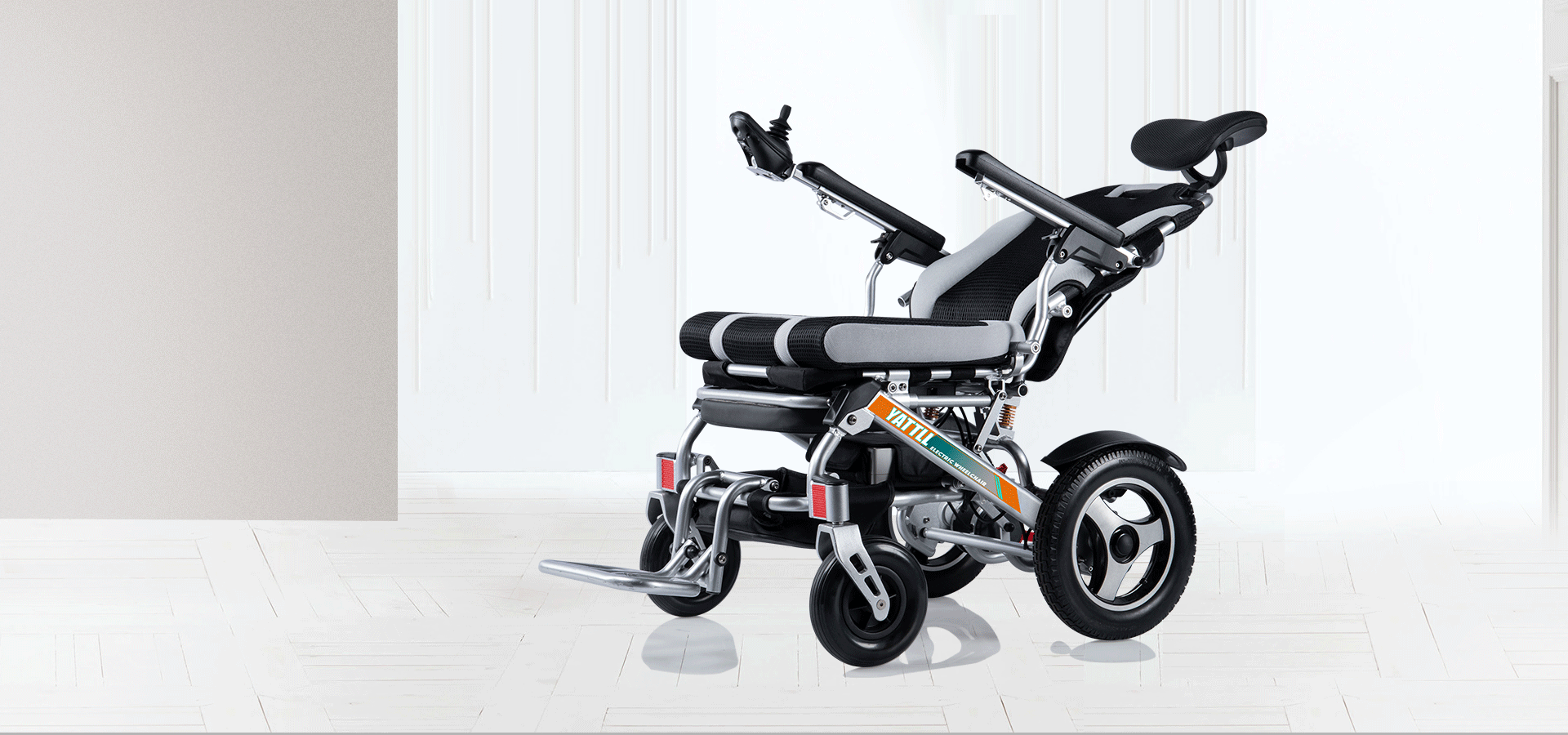

This wheelchair is designed with an awesome reclining backrest, and comfortable leg rest.
02
It has a medical motor and air cyliner, which makes the reclining and lifting very smooth.
03

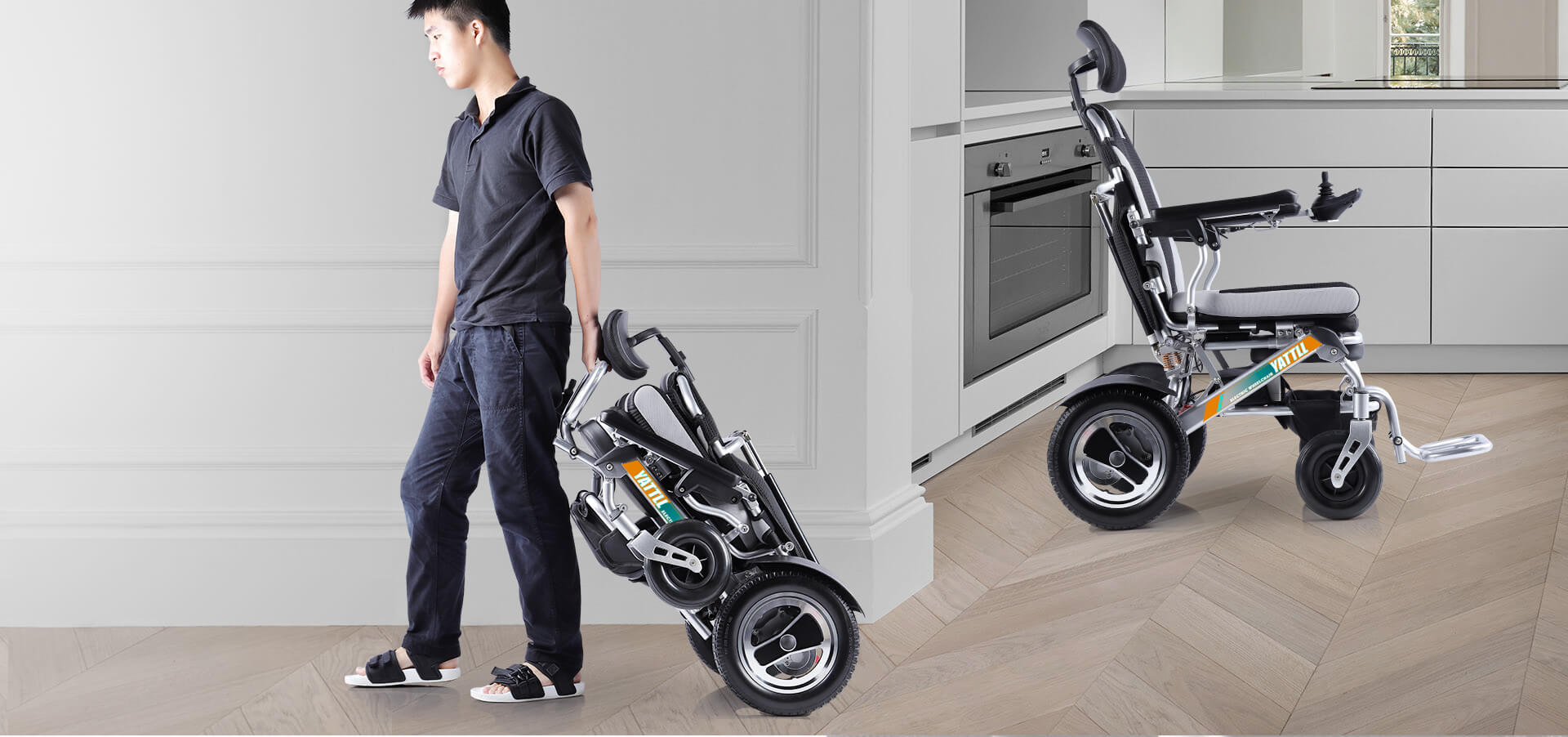

Two steps to fold and unfold, making it very simple to use for all passengers.
04
​Ergonomic backrest design, the Angle and height of the headrest can be adjusted at will.

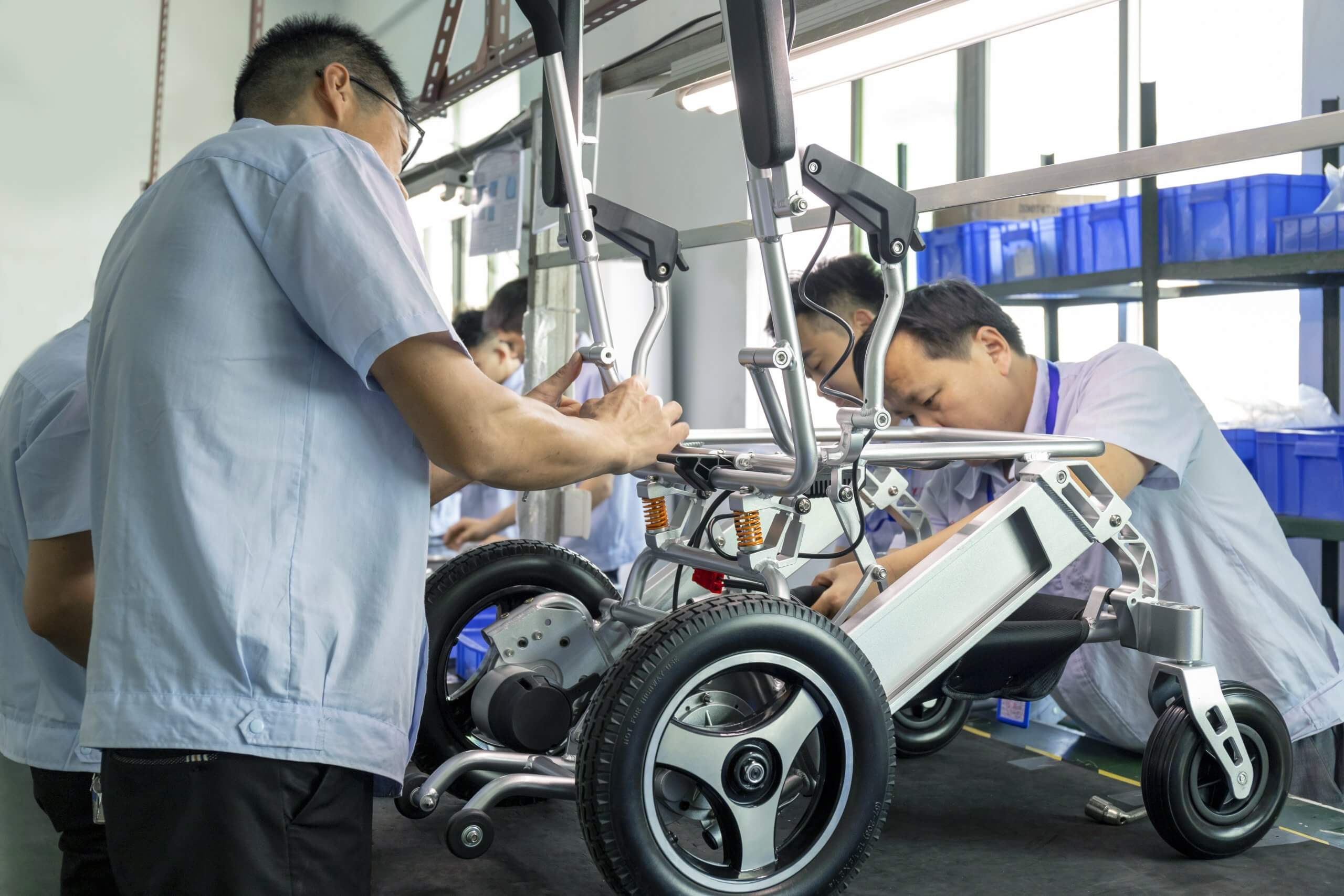

YATTLL Manufactures High-quality Wheelchair
